Managing Control Group

Overview

Control Groups are sets of accelerated domains run through CDNetworks. Control Groups can be assigned users, who then have access to monitoring traffic, billing, and service configuration (provided they have the appropriate privileges set on their accounts) for the accelerated domains included in the Control Group.

• You have contracted with CDNetworks, you want to manage your services by contracts in the same product, for example, when you have multiple contracts of CA product with CDNetworks, you manage our CDN domains by each contract, Control Group help your business needs as you want by dividing CDN domains corresponding to your contracts.
• An accelerated domain can be part of multiple Control Groups, and a single user can be assigned to multiple Control Groups as well.
• “Predefined – Customer” Control Group
  • A Control Group that is automatically created when a contract and first user is created is the “Predefined – Customer” Control Group, which includes all domains associated with the customer account. The name of this Control Group cannot be modified.
• “Predefined – Product” Control Group
  • Another automatically generated Control Group is the “Predefined – Product” Control Group, which includes all the domains associated with a new contract. The value of such a group is in being able to view total traffic under the contract and reconcile that with billing statements and do planning for anticipated traffic changes or contract upgrades.
  • Unlike the more global “Predefined – Customer” Control Group, this Control Group’s name can be customized by a Master Account.
• User-Customized Control Group
  • All other Control Groups are created by and customizable by a Master Account and can include any combination of PADs across whatever contracts are associated with the customer account, giving access to any users associated with the customer account.

How to manage Control Group

• Applicable Product

  • CDN Product, Cloud Security Products

• Entrance

  • IAM → Permissions → Control Group MGMT

• Description

  • CDNetworks Console provides the management function of Control Group - change Base Info, Control Group, Control Group sharing.

  • Functions are illustrated as follows: Basic Information, Control Group detail, and Control group sharing.

    No	Function	Illustration
    1	Base Info	This part is that Control Group name what you enter ( the limit of name length is 100 chars).
    2	Control Group	This part provides the corresponding domains with each contract assigned to your Main Account( primary account). in the “Predefined-Customer” or “Predefined-Product” Control Group, you cannot change domain lists at each Control Group. in the case of “User-Customized” Control Group, your Main Account can select domains from the domain lists of each contract, and you can assign contracts and domains to the control group being edited by ticking the relevant checkboxes.
    3	Control group sharing	This part is to enable your Main Account to assign your Sub Accounts with corresponding domains that you assign. and then subaccounts can access your acceleration domains with the role/permission of the functions that your Main Account assigns.

• For each type of Control Group, there are different support functions to change.

  No	Function	Pre-defined Customer	Pre-Defined Product	User-Customized
  1	Base Info	No Change	No Change	Support
  2	Control Group	No Change	No Change	Support
  3	Control group sharing	Support	Support	Support

• In this article, we introduce the procedures to create “User-Customized Control Group” for explaining the full management function of Control Group.

• As following sections that you read, you can create/edit a User-Defined Control Group to fill your-defined-Control Group at (1), set domains from each contract-item at (2), set Sub Accounts to allow the permission to access, and then submit to complete create/edit.

How to create Control Group

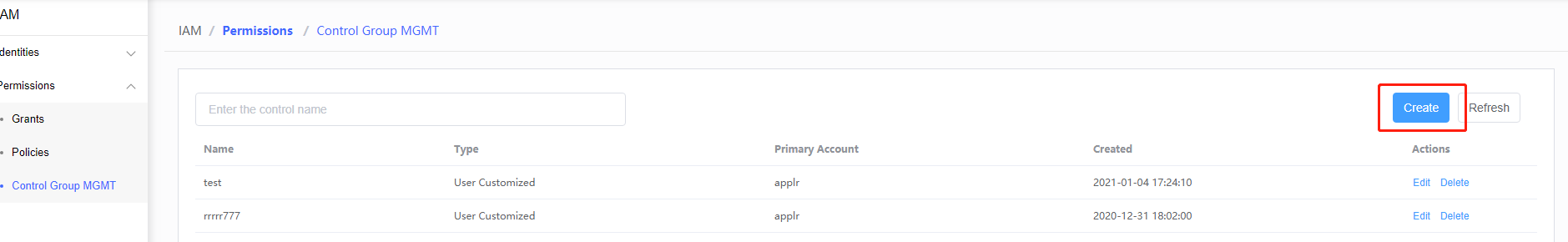

• By clicking on “Create” button. Then the page will be redirected to the add page.

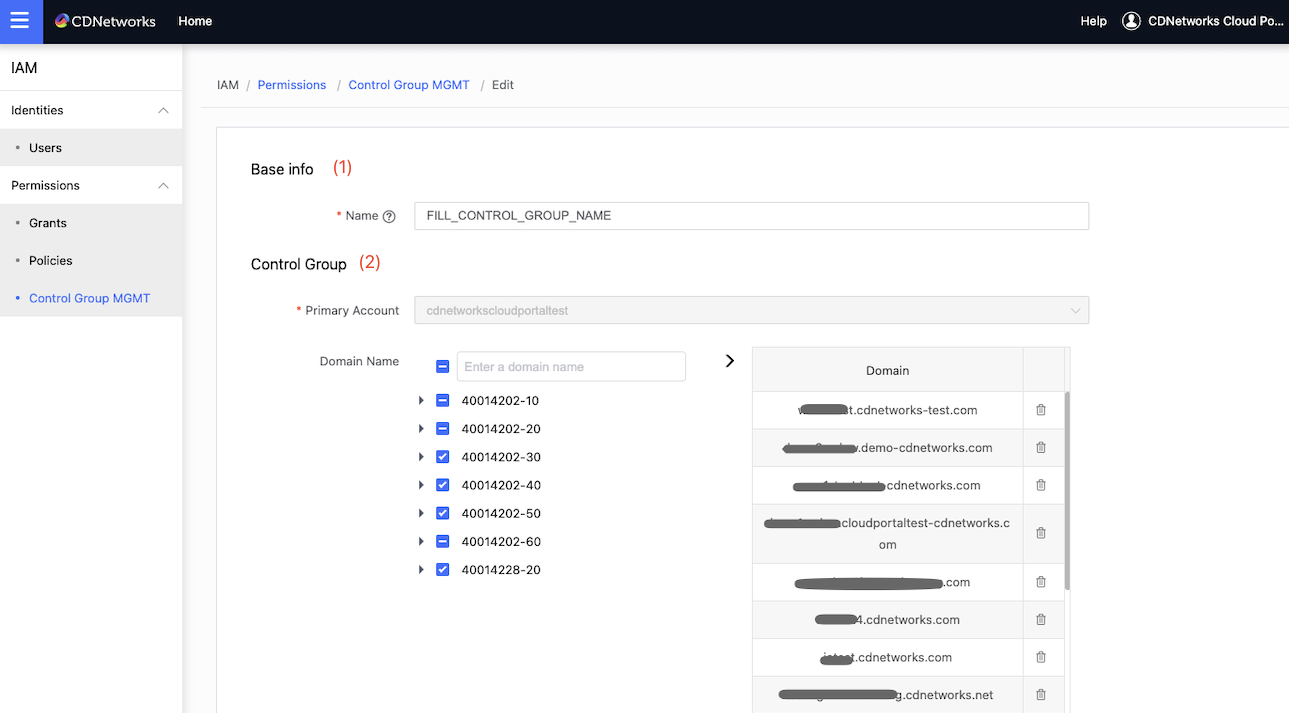

• Fill a new Control Group name at the Name Field (1) in the Base Info. and select the domains to you set access-control in Control Group(2)

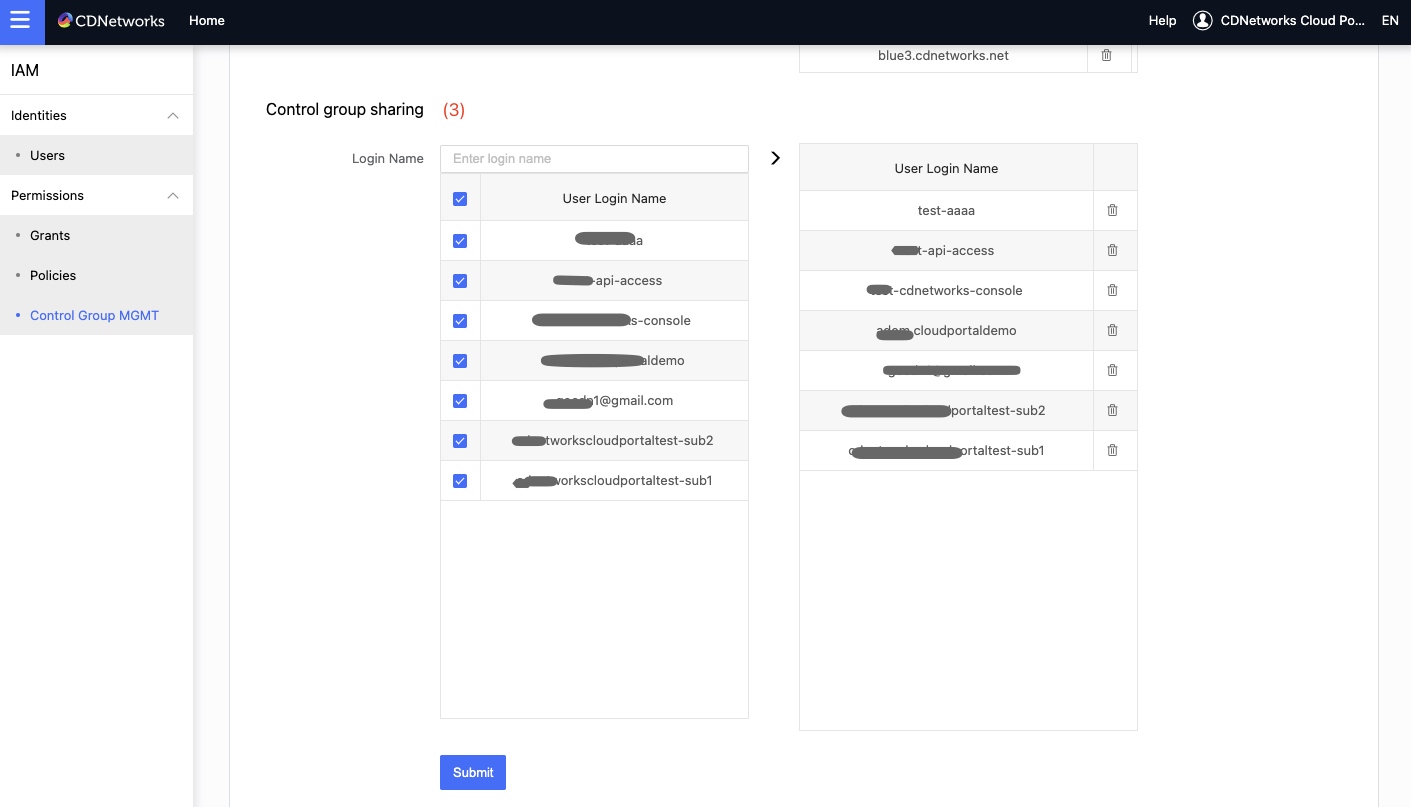

• You can associate user accounts to access the domains in the Control Group sharing (3). and then click [submit] to commit.


How to Edit Control Group

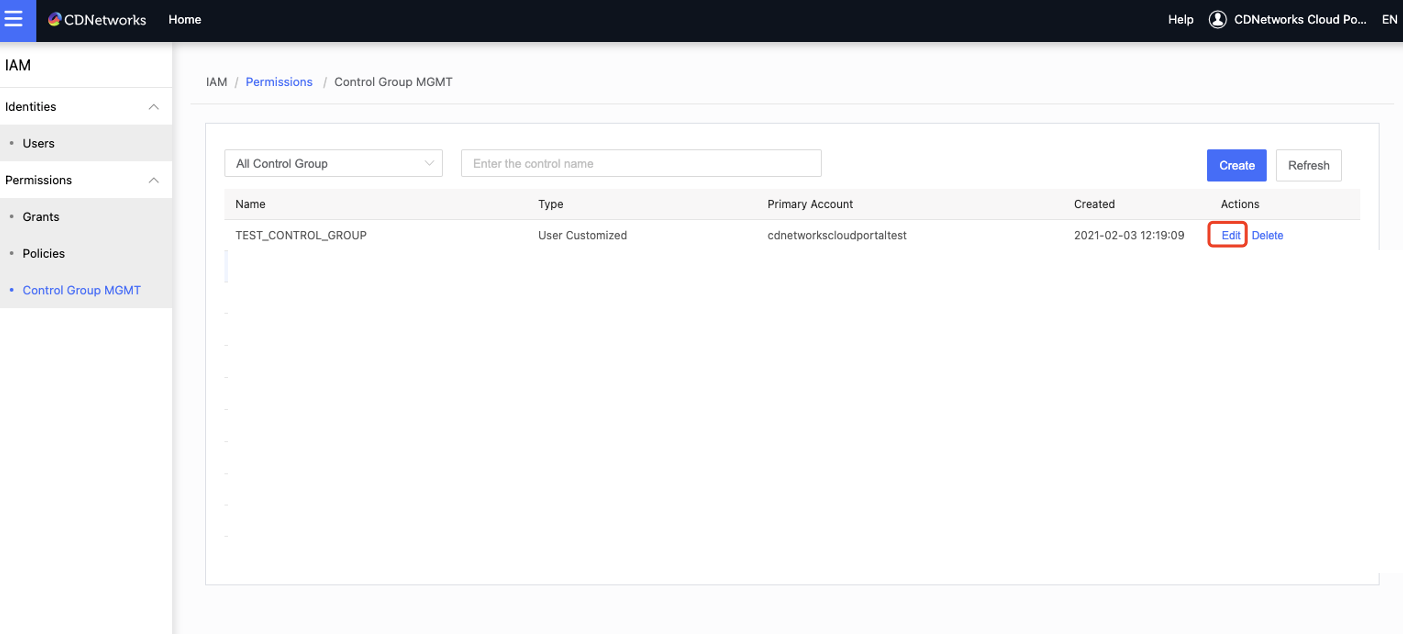

• By clicking on “Edit" button. Then the page will be redirected to the add page.



• You can change the name of the Control Group name at the Name Field (1) in the Base Info. and update the domains to you re-arrange to access-control in Control Group(2)


• You can change user accounts to set access the domains in the Control Group sharing (3). and then click [submit] to commit.
