Multipart Upload

Description

The multipart upload capability supports splitting a file into a series of data chunks of a specific size, uploading these data chunks separately onto the server side respectively, and then merging all these data chunks into a resource at the server side upon completion of the upload of all chunks.

NOTE:

1. Multipart upload return data supports returnBody, and does not support returnUrl.
2. A multipart upload request must specify a file’s key, which can be specified either in the upload policy or the request header. The key in the upload policy has a higher priority.
3. The upload domain name provided by the cloud storage is an ordinary domain name.

Key Concepts

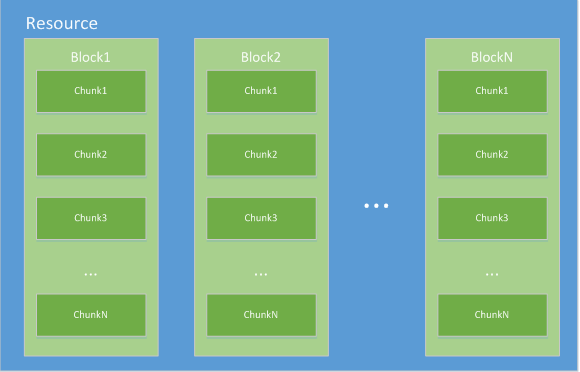

Two concepts are introduced with the multipart upload: Blocks and chunks. A resource comprises one or more blocks, while each block comprises one or more chunks.

NOTE: The server side of the cloud storage will periodically clear the blocks and chunks that have not been merged into files after being uploaded, approximately once every month.

Basic Process

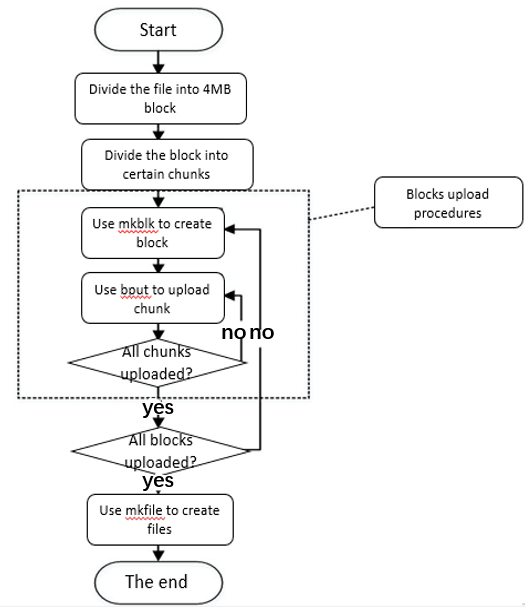

The APIs related to the multipart upload include: Create block (mkblk), upload chunk (bput), and create file (mkfile). The multipart upload process is as shown below:

Wherein, the key points are as follows:

• Split the file to be uploaded into several blocks according to a set block size (such as 4MB). The actual size shall apply for the last block of the file. There will be only one block if the file is smaller than the set block size.
• The set block size must be a multiple of 4MB, such as 4MB, 8MB, and 12MB. Otherwise, the calculation of the ETag value of a file will be affected.
• Split each block into several chunks according to the predefined chunk size, create a corresponding block at the server side by calling mkblk, upload all remaining chunks completely by calling bput, and finally complete the upload of an entire block.
• Upon completion of the upload of all blocks, merge the information of these uploaded blocks into a resource file according to the specified sequence by calling mkfile so as to complete the multipart upload process of the entire resource.

Resuming Upload from Breakpoint

Resume upload from breakpoint can be implemented by utilizing the multipart upload capability.

For every chunk uploaded successfully during the multipart upload process, the client will always receive progress information returned from the server side that shows how many chunks have been uploaded so far, and therefore will know which chunk will need to be uploaded next. Although chunks that have already been uploaded successfully are not stored at the server side permanently, these are already enough for implementing the resume-upload-from-breakpoint mechanism.
To implement resume upload from breakpoint, the client is required to always make such progress information persistent locally every time it is received. In this way, even if the user side program crashes unexpectedly or reboots normally, it can always continue transmitting remaining chunks at the time of startup. By utilizing the resume-upload-from-breakpoint capability, the client can pause or resume the upload process of a certain file.

Concurrent Upload

During a multipart upload, all chunks that have been split inside each block can only be uploaded one by one in sequence, with all blocks being independent of each other. Therefore, several blocks can be transmitted simultaneously without interfering with one another. This feature enables concurrent uploads to be implemented.

Create Block

Description

Creates a new block for subsequent multipart uploads, and uploads the first chunk of data at the same time.

Request Description

POST /mkblk/<blockSize>/<blockOrder>
    Host: <UploadDomain>
    Authorization:<UploadToken>
    Content-Length:<firstChunkSize>
    Content-Type:application/octet-stream
    UploadBatch:<uuid>
    Key:<key>
    <firstChunkBinary>

Header Description

Parameter	Required	Description
Host	Yes	Upload Domain Name, which can be obtained from the User Management Interface.
Authorization	Yes	Upload Credential
Content-Length	Yes	Length of the content of the first chunk, unit: Bytes.
Content-Type	Yes	Fixed as application/octet-stream.
UploadBatch	Yes	Multipart upload task ID, UUID random string. Different IDs will be used for the multipart upload of different files. Use the same UploadBatch for the same multipart upload task
Key	No	Custom File Name). It must be [URL-Safe Base64 Encoded] (#/help/details/31/3707).

Parameter Description

Parameter	Required	Description
<blockSize>	Yes	Block size, which must be a multiple of 4MB (such as 4MB, 8MB, 12MB...); the actual size is used for the last block. Unit: Bytes.
<blockOrder>	Yes	Numbering of blocks in the sequence, which starts from 0.

Request Content

Binary content of the first chunk.

 <firstChunkBinary>

Response Description

If a request is successful, a JSON string of the following content will be returned:

  {
        "ctx":          "<Ctx           string>",
        "checksum":     "<Checksum      string>",
        "crc32":         "<Crc32         int64>",
        "offset":        "<Offset        int64>"
    }

Field name	Required	Description
ctx	Yes	Block-level upload control information created upon the success of this upload, which will subsequently be used for uploading chunks and generating the file. This field is an opaque field that can only be used by the WCS server for understanding, and the upload end should not modify the content. The <ctx> returned each time will always only correspond to the next data chunk uploaded immediately after the chunk. The 401 status code will be returned if a non-corresponding data chunk is uploaded.
checksum	Yes	Upload block verification code.
crc32	Yes	Upload block Crc32. You can use this field to verify the integrity of the upload block.
offset	Yes	Offset of the next upload chunk in the split block. If the chunk size equals the block size, then the said return value will be the size of the current block.

If a request fails, a JSON character string of the following content will be returned:

 {
            "code":     "<code string>",
            "message":  "<message string>"
    }

Field name	Required	Description
code	Yes	HTTP request response code. Refer to the [HTTP Response Status Codes] (#/help/details/31/3705)
message	Yes	Prompt message.

Example

curl -v -X POST --data-binary "@/home/test/0" -H "Authorization:86622e227a50d49d858c2494a935bc2e4ac543a7:ZTIzYjFiZmFkYWRjODdiNjJlMTI4NDgyZGI1MGJmMWYzZGE2MjllNA==:eyJzY29wZSI6ImltYWdlczpzbGljZS50eHQiLCJkZWFkbGluZSI6IjE0Mzg1ODg0MDYxMDkiLCJvdmVyd3JpdGUiOjAsImZzaXplTGltaXQiOjEwNzM3NDE4MjQsImluc3RhbnQiOjB9" -H "Content-Type:application/octet-stream" -H "Content-Length:4194304" -H "UploadBatch:abcdabcd-abcd-abcd-abcd-abcdabcdabcd"--url "http://uploadDomain/mkblk/4194304/0"

Upload Chunk

Description

Uploads a chunk of data of the specified block. The specific data volume can be adjusted based on the field environment. All chunks of data of the same block must be uploaded in series.

Request Description

POST /bput/<ctx>/<nextChunkOffset>
    Host: <UploadDomain>
    Authorization:<UploadToken>
    Content-Length:<ChunkSize>
    Content-Type:application/octet-stream
    UploadBatch:<uuid>
    Key:<key>
    <ChunkBinary>

Header Description

Parameter	Required	Description
Host	Yes	Upload Domain Name, which can be obtained from the User Management Interface.
Authorization	Yes	Upload Credential
Content-Length	Yes	Length of the content of the current chunk, unit: Bytes.
Content-Type	Yes	Fixed as application/octet-stream.
UploadBatch	Yes	Multipart upload task ID, UUID random string. Different IDs will be used for the multipart upload of different files. Use the same UploadBatch for the same multipart upload task
Key	No	Custom File Name). It must be [URL-Safe Base64 Encoded] (#/help/details/31/3707).

Parameter Description

Parameter	Required	Description
<ctx>	Yes	Block-level upload control information returned from the previous upload.
<nextChunkOffset>	Yes	Initial offset of current chunk in the entire block.

Request Content

Binary content of the current chunk.

<ChunkBinary>

Response Description

If a request is successful, a JSON string of the following content will be returned:

{
        "ctx":          "<Ctx           string>",
        "checksum":     "<Checksum      string>",
        "crc32":         "<Crc32         int64>",
        "offset":        "<Offset        int64>"
    }

Field name	Required	Description
ctx	Yes	Block-level upload control information created upon the success of this upload, which will subsequently be used for uploading chunks and generating the file. This field is an opaque field that can only be used by the WCS server for understanding, and the upload end should not modify the content. The returned each time will always only correspond to the next data chunk uploaded immediately after the chunk. The 401 status code will be returned if a non-corresponding data chunk is uploaded.
checksum	Yes	Upload block verification code.
crc32	Yes	Upload block Crc32. You can use this field to verify the integrity of the upload block.
offset	Yes	Offset of the next upload chunk in the split block.

If a request fails, a JSON character string of the following content will be returned:

{
       "code":     "<code string>",
       "message":  "<ErrMsg string>"
   }

Field name	Required	Description
code	Yes	HTTP request response code. Refer to the [HTTP Response Status Codes] (#/help/details/31/3705)
message	Yes	Prompt message.

Example

curl -v -X POST --data-binary "@/home/test/0" -H "Authorization:86diNjJlMTI4NDgyZGI1MGJmMWYzZGE2MjllNA==:eyJzY29wZSI6ImltYWdlczpzbGljZS50eHQiLCJkZWFkbGluZSI6IjE0Mzg1ODg0MDYxMDkiLCJvdmVyd3JpdGUiOjAsImZzaXplTGltaXQiOjEwNzM3NDE4MjQsImluc3RhbnQiOjB9" -H "Content-Type:application/octet-stream" -H "Content-Length:2097152" -H "UploadBatch:abcdabcd-abcd-abcd-abcd-abcdabcdabcd" --url "http://uploadDomain/bput/34514eab06922ff67ac7a16cdd28e994/2097152"

Create file

Description

Merges all uploaded data blocks into a resource file according to the specified sequence.

Request Description

POST /mkfile/<fileSize>/<UserParam>/<encodUserVars>
    Host: <UploadDomain>
    Authorization:<UploadToken>
    Content-Length:<ctxListSize>
    Content-Type:text/plain;charset=UTF-8
    UploadBatch:<uuid>
    Key:<key>
    MimeType:<mimeType>
    Deadline:<Deadline>
    <ctxList>

Header Description

Parameter	Required	Description
Host	Yes	Upload Domain Name, which can be obtained from the User Management Interface.
Authorization	Yes	Upload Credential.
Content-Length	Yes	The length of <ctx> and separator of all blocks, unit: Bytes.
Content-Type	Yes	Fixed as text/plain.
UploadBatch	Yes	Multipart upload task ID, UUID random string. Different IDs will be used for the multipart upload of different files. Use the same UploadBatch for the same multipart upload task
Key	No	Custom File Name). It must be [URL-Safe Base64 Encoded] (#/help/details/31/3707).
MimeType	No	MIME-Type of custom file.
Deadline	No	File storage life. Files that exceed the number of storage days will be deleted automatically, unit: Days. For example: 1, 2, 3... NOTE: 0 indicates deletion as soon as possible. Configuration of 0 during file upload is not recommended

Parameter Description

Parameter	Required	Description
<fileSize>	Yes	Resource file size.
<UserParam>	No	Custom variable. Note that it must begin with x:.
<encodedUserVars>	No	Specifies the value of a custom variable. It must be [URL-Safe Base64 Encoded] (#/help/details/31/3707).

Request Content

The content of this request is a list obtained following the upload of the last data chunk of each data block, which is separated with the comma (,) and sorted according to its location in the source file.
Notes: No comma is needed after the last item in a list.

<lastCtxOfBlock1>,<lastCtxOfBlock2>,<lastCtxOfBlock3>,...,<lastCtxOfBlockN>

Response Description

If a request is successful, a JSON string of the following content will be returned:

{
        "hash":"<ContentHash>",
        "key":"<Key>"
    }

Field name	Required	Description
code	Yes	HTTP request response code. Refer to the [HTTP Response Status Codes] (#/help/details/31/3705)
message	Yes	Prompt message.

Example

 curl -v -X POST -H 'Authorization:df115a7a498e873b74c2eab217e406a192f0ed14:NzJhMzRhODhhZTA5YjNmNjhkNWJlODY0MDI1NzQ0Nzc1OGExODkwNw==:eyJzY29wZSI6Indoai1zdHlsZS10ZXN0OmZlbnAt5L2g5aW9IUAjJiolZWUubXA0IiwiZGVhZGxpbmUiOiIyNDM4MDc4NjQ3ODMwIiwib3ZlcndyaXRlIjoxLCJmc2l6ZUxpbWl0IjoxMDczNzQxODI0LCJjYWxsYmFja1VybCI6Imh0dHA6Ly9kZW1vLmNvbTo4MS9jYWxsYmFja1VybCIsImNhbGxiYWNrQm9keSI6ImJ1Y2tldD0kKGJ1Y2tldCkma2V5PSQoa2V5KSZmbmFtZT0kKGZuYW1lKSZmc2l6ZT0kKGZzaXplKSZpcD0kKGlwKSZtaW1lVHlwZT0kKG1pbWVUeXBlKSZ1cmw9JCh1cmwpJmNvc3RUaW1lPSQoY29zdFRpbWUpJnVzZXJuYW1lPXdoaiZhZ2U9MTEmcG9zaXRpb249JCh4OnBvc2l0aW9uKSZtZXNzYWdlPSQoeDptZXNzYWdlKSIsImluc3RhbnQiOjB9' -H 'Content-Type:text/plain;charset=UTF-8' -H 'Content-Length:65' -H "UploadBatch:abcdabcd-abcd-abcd-abcd-abcdabcdabcd" --url 'http://uploadDomain/mkfile/6339685/x:position/bG9jYWw=/x:message/dXBsb2Fk' -d "c636ec95ef7a8889dec882ef7eb9306e,d7243df51cb880e11c107088ce942f9c"
