Function Description

Domain settings contains below functions:

  • Domain list view: domain search, basic information, status.
  • Add domain: Submit domain application.
  • Modify configurations: allow to configure the bandwidth limit, Rate limit on single connection,access control, origin, Http, Http custom header.
  • Delete/Disable domain: Disable domain.

Domain List

Click Cloud VoD>Preference>Domains, check domain list:
온라인 지원센터 변경 안내

You can

  • Check domain basic info such as domain name, CNAME, HTTPS enable status, domain service status.
  • Quickly search:you can quickly find your domain by selecting specific domain service status and type, you can also enter keywords to search your domain. domain service status includes in effect, disabled, deploying, auditing, disabling, type includes HTTP and HTTPS.

Add Domain

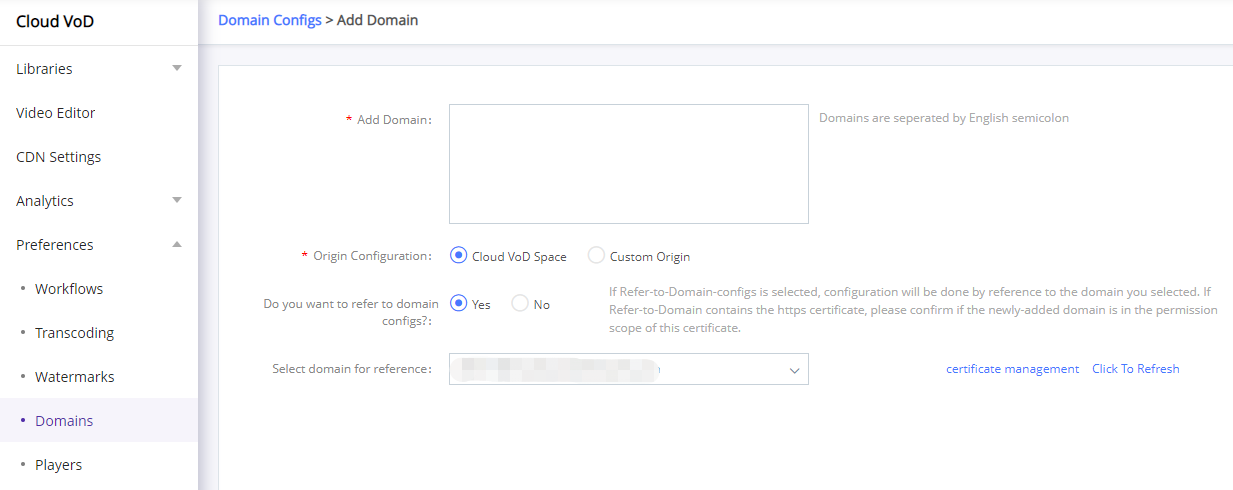

Firstly, click Cloud VoD>Preference>Domains>Add domain

온라인 지원센터 변경 안내

  • Add domain: support enter multiple domains, seperated by English semicolon.
  • Origin configuration: includes Cloud VoD Space and Custom Origin. When choosing custom origin, you need to enter BtO(Back-to-Origin) domain name and BtO IP. (Support setting one BtO domain name; support setting more than one BtO IP and use ‘;’ to separate when there is more than one IP.)
  • If refers to domain configs: Support to custom domain config or refer to the existing domain configs. If yes is selected, the configuration will be done same as the referential domain you selected. If the referential domain contains the https certificate, please make sure the newly-added domain is within the limit permitted by this certificate.)

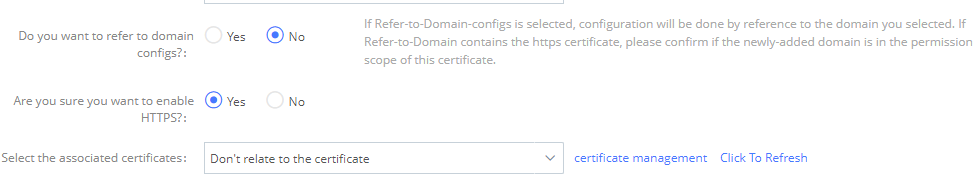

  • If you don’t want to refer to any domains and you need to enable HTTPS, like below, you need to associate a certificate.
    온라인 지원센터 변경 안내
  • Select to associate a certificate: you can choose not to associate a certificate or upload a certificate additionally(click certificate management to upload a certificate there, then go back and click refresh, there you can select the new-uploaded certificate to associate)
    온라인 지원센터 변경 안내

Secondly, click Submit Audition, the new-added domain will be shown in the domain list with the status of auditing.

Modify configurations

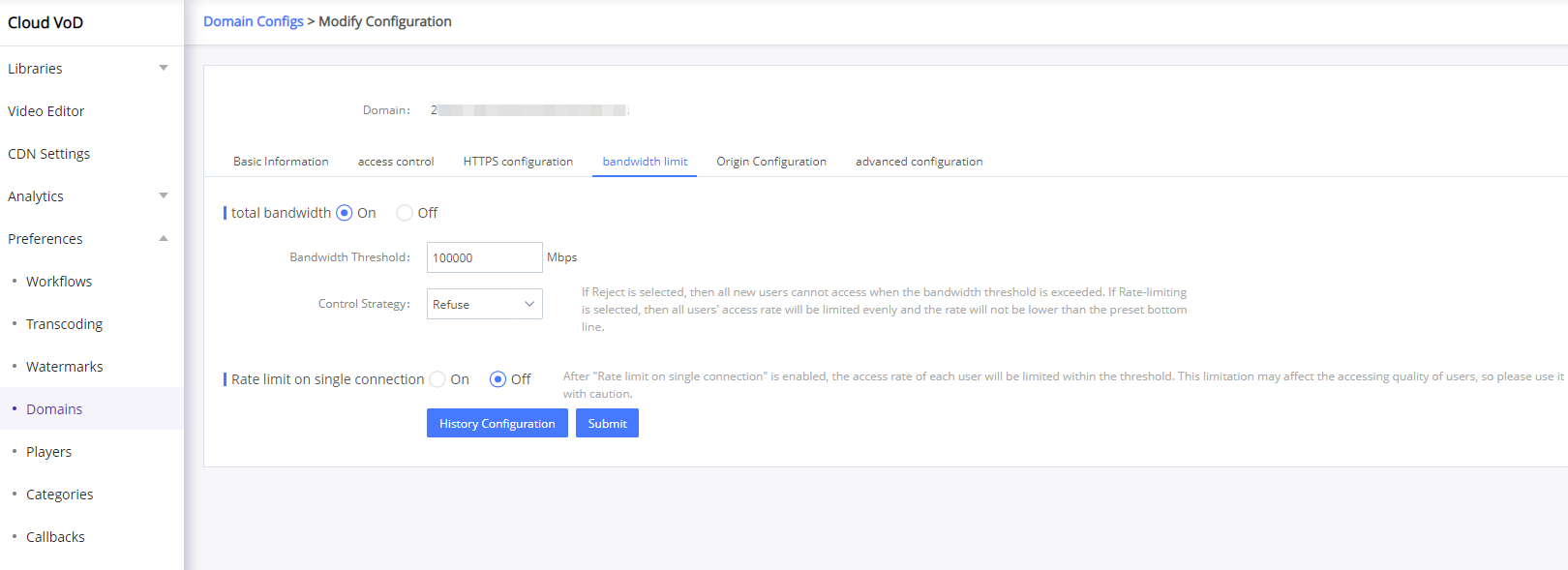

Click Cloud VoD>Preference>Domains>Modify Configuration
온라인 지원센터 변경 안내
Tip: Only in-effect domains can be modified configurations.

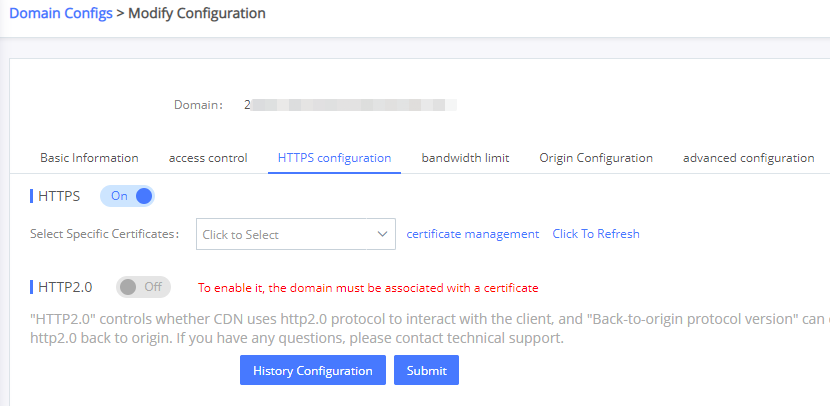

HTTPS Configuration

You can enable or disable HTTPS by yourself. Enable HTTPS must associate a certificate, otherwise the function will not work.
Enabling HTTP2.0 also need to associate a certificate
온라인 지원센터 변경 안내

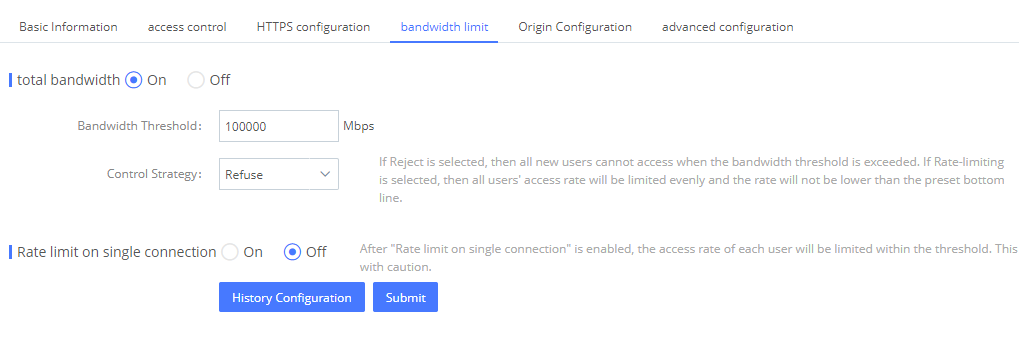

Bandwidth Limit

Total bandwidth limit

Support to open or close bandwidth limit, set bandwidth threshold value, choose control strategy, check history configuration.

Bandwdith limit status Description
OFF No bandwidth limit by default, guarantee quality first.
ON control the bandwidth according to the configured bandwidth threshold and control strategy.
Control Strategy Description
Refuse refuse all new users’ access when bandwidth reaches the threshold.
Speed limit limit the speed but won’t make it lower than the configured lowest speed, details in Rate limit on single connection

Rate limit on single connection

Support to enable or disable the function of Rate limit on single connection.

Rate limit on single connection Description
OFF No visit speed limit to any single connection, guarantee the performance first
ON the visit speed of each user is controlled within the configured threshold, it may affect users’ access quality.

온라인 지원센터 변경 안내

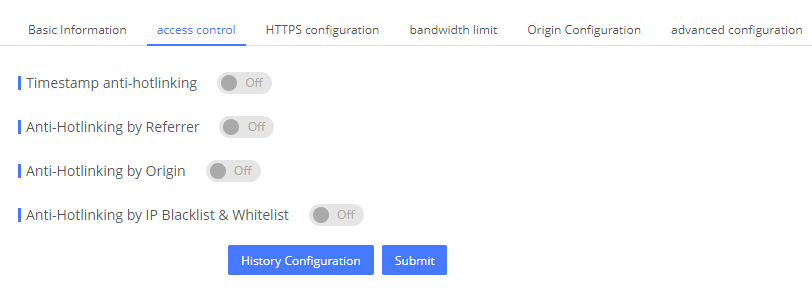

Access Control

You can configure Timestamp anti-hotlinking, Anti-Hotlinking by Referrer, Origin and IP Blacklist & Whitelist to your domains according to your security requirements.
온라인 지원센터 변경 안내

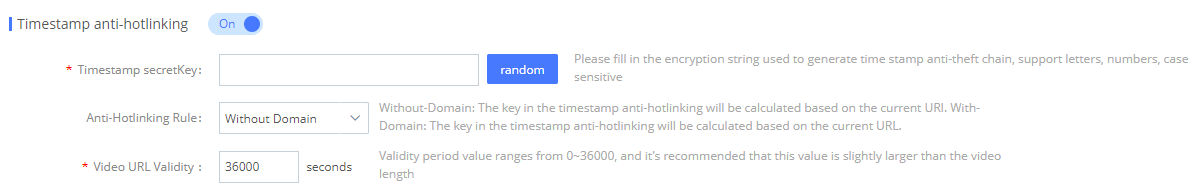

Timestamp anti-hotlinking

온라인 지원센터 변경 안내

Items Description
Anti-Hotlinking Rule Without-Domain: The key in the timestamp anti-hotlinking will be calculated based on the current URI.
With-Domain: The key in the timestamp anti-hotlinking will be calculated based on the current URL.
Video URL Valid Duration value ranges from 0~36000, and it’s recommended that this value is slightly larger than the video length

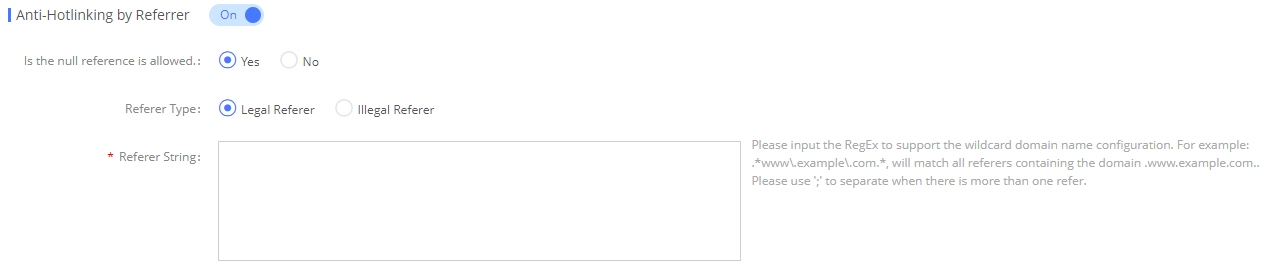

Anti-Hotlinking by Referrer

온라인 지원센터 변경 안내

Items Description
Is the null reference is allowed If accept a request with empty referrer
referer type Legal referer
Illegal referer
referer string Please enter the RegEx, support the wildcard domain name configuration.
For example, .www.example.com, will match all referrers containing the domain www.example.com. Please use semicolons to separate when there is more than one referrer.

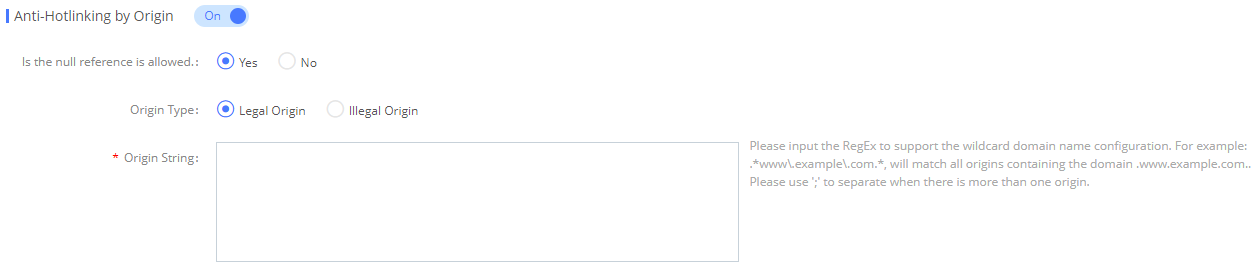

Anti-Hotlinking by Origin

온라인 지원센터 변경 안내

Items Description
Is the null reference is allowed If accept a request with empty origin
origin type Legal origin
Illegal origin
origin string Please enter the RegEx, support the wildcard domain name configuration.
For example, .www.example.com, will match all origins containing the domain www.example.com. Please use semicolons to separate when there is more than one origin.

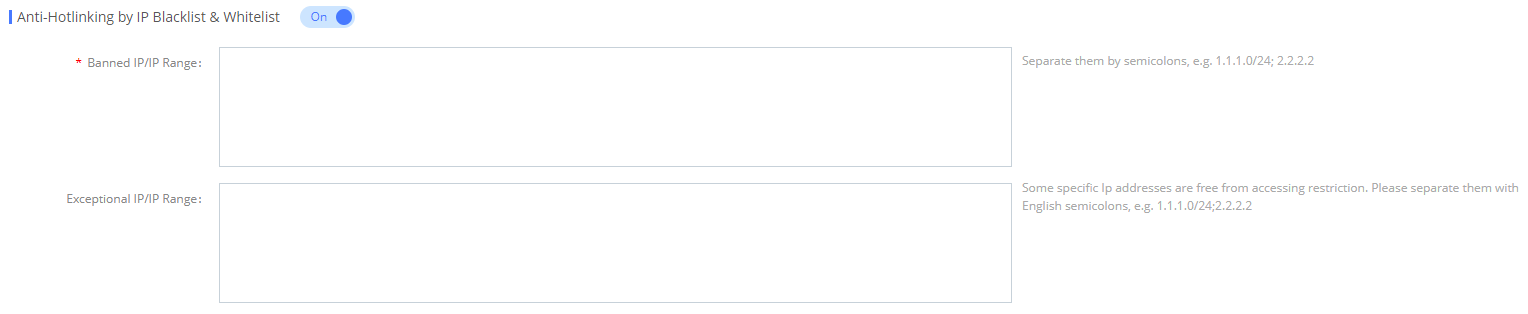

Anti-Hotlinking by IP Blacklist & Whitelist

온라인 지원센터 변경 안내

Items Description
Banned IP/IP Range Set the request origin IP/IP Range that are not allowed to access, Separate them by semicolons, e.g. 1.1.1.0/24; 2.2.2.2
Exceptional IP/IP Range Set exceptional IP/IP Range under the banned IP/IP Range, they are Ip addresses who are free from accessing restriction. separate them with English semicolons, e.g. 1.1.1.0/24;2.2.2.2

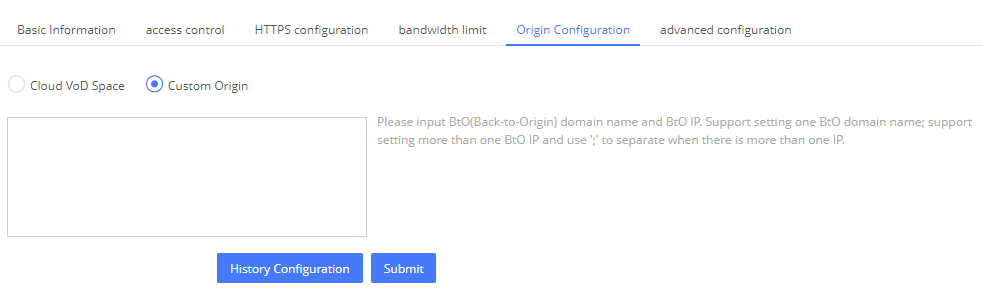

Origin Configuration

Support to configure origin information.
온라인 지원센터 변경 안내

Items Description
Cloud VoD Space set by default
Custom Origin You can set your enterprise origin as your domain’s origin per needed, please enter BtO(Back-to-Origin) domain name and BtO IP;
Support setting one BtO domain name;
support setting more than one BtO IP and use ‘;’ to separate when there is more than one IP.

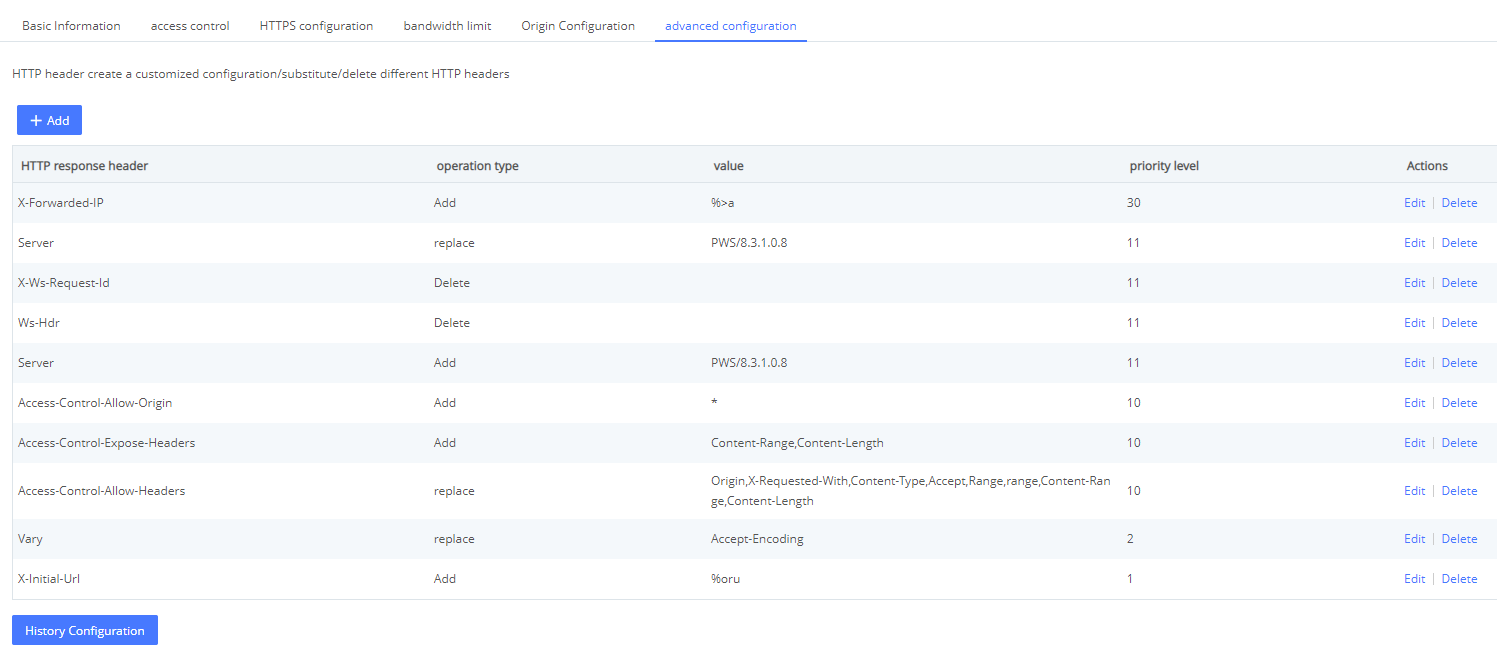

Advanced Configuration

Support to add custom HTTP headers.
Tip: system add 3 HTTP headers by default when a domain is created, do not delete them, otherwise, it will cause function not work.
온라인 지원센터 변경 안내

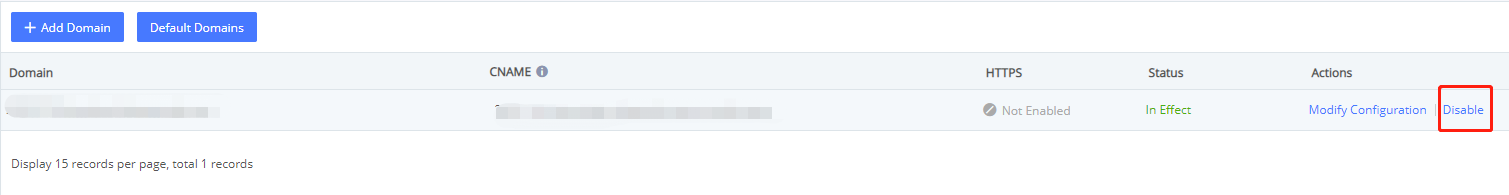

Disable domain

Click the ‘disble’ button on the right of valid domain, and this domain will be disabled, user cannot access the resouce under this domain.
온라인 지원센터 변경 안내
Tip: Only in-effect domain can be allowed to this operation.

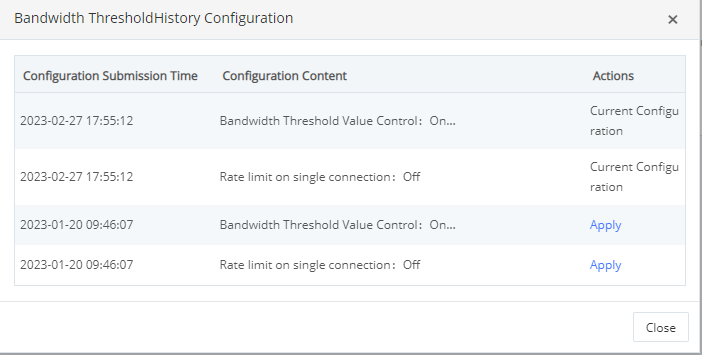

History Configuration

Support to check history configuration and re-enable it.
온라인 지원센터 변경 안내
